Toroidal indexers


Toroidal shape of the rotary table

3 ti affiancati

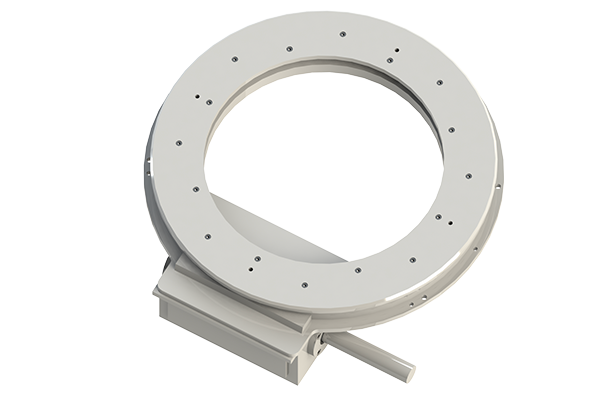

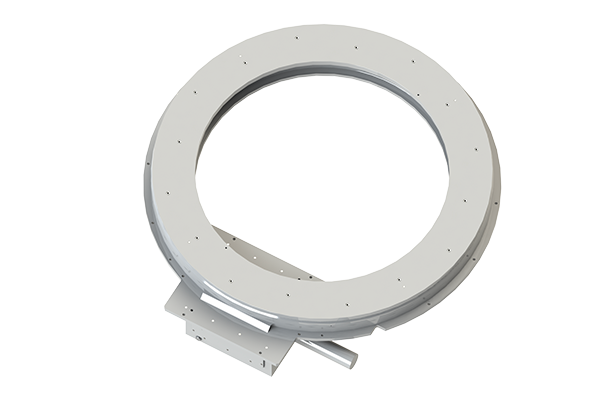

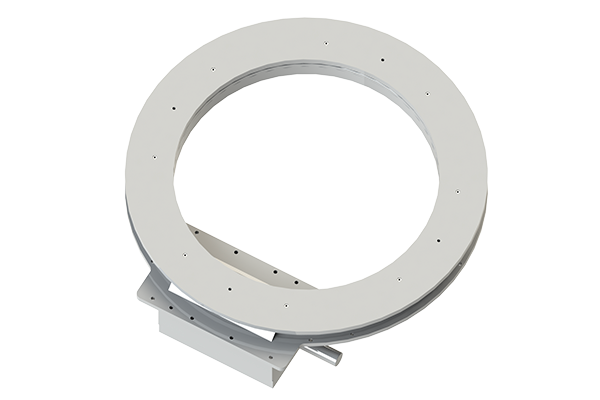

The Italplant toroidal indexers TI are cylindrical cam mechanisms with similar functioning to the other rotary table of our production. The difference with these is that turn a ring instead of the dial plate.

From this fact born the toroidal shape of the rotary table, particularly useful in case you need a lot of space in the central area. This space allows, in addition to the passage of cables, the placing of assembly stations, pick and place and any equipment that would otherwise be located outside, taking away valuable space.

The result is a compact indexer, with performance and load capacity superior to its competitors, due to the roller follower by Italplant design, which enhance the mechanical properties.

Download the brochure

Performance and reliability, since our foundation

    All fields marked with the symbol * are required


    • High speed for continuous motion running
    • Enormous inner hole
    • Alluminium toroidal dial plate
    • Slim construction
    • Low internal inertia
    • Optimum accuracy
    • 4 sizes available
    • Mechanism with cylindrical cam
    dettaglio TI

    Sectors of use

    The sectors in which the TI range is mostly used
