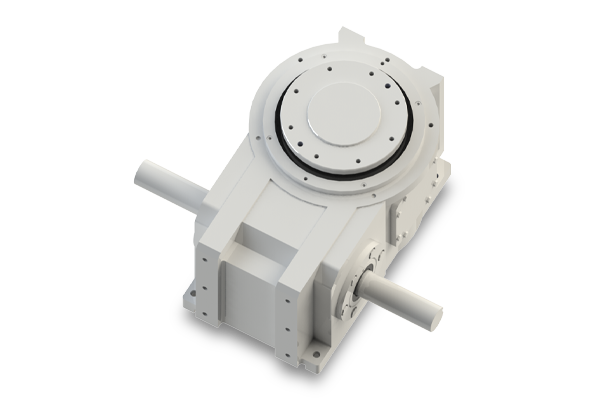

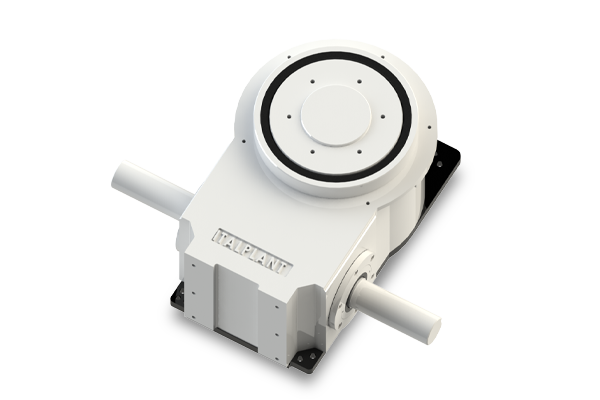

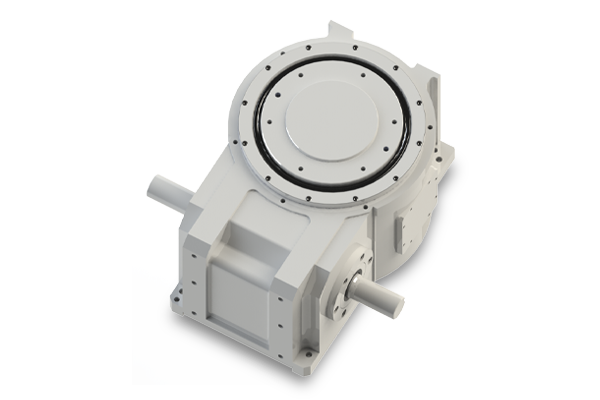

Stationary Plate series for globoidal index units

SP

Maximum precision and reliability for your rotary tables with SP globoidal cam indexers

PLC - 20

The Stationary Plate series for globoidal index units comprises a range of special shape high strength cast iron housing designed to provide features wich can allow them to be used as the base of a rotary or linear machine. The housing has a large location diameter onto wich a stationary plate can be attached, This may be used for the tooling assembly such as drilling heads, load/unload devices etc. A large bore in the output shaft is provided as standard, through which services such as air and/or liquids can be passed.
In addition, a stationary centre post can be fitted, onto which a second plate can be mounted. A full range of stops, index angles and cam laws is available. Available with Safety Output Torque Limiter SOTL/ATT.
For cycle-on-demand applications, index angles up to 330 degrees are available.
The SP range of units can also be mounted with the output shaft vertical/horizontal for use in linear applications.

Download the brochure

Performance and reliability, since our foundation

    All fields marked with the symbol * are required

    Options

    • Center through hole, for the passage of electrically/hydraulic equipment cables
    • Stationary center-post, available with center through hole
    • Choice of motor/worm reducer positions
    • Available as indexer only without reducer or motor
    • Available with Safety Output Torque Limiter SOTL/ATT

    Features

    • Rigid cast iron housing
    • Large diameter pre-loaded taper roller bearings
    • Location diameter and mounting face for stationary tooling plate
    • High accurate roller followers for smooth motion and accurate indexing
    • Fully ground cam profile

    Sectors of use

    The sectors in which the SP range is mostly used
